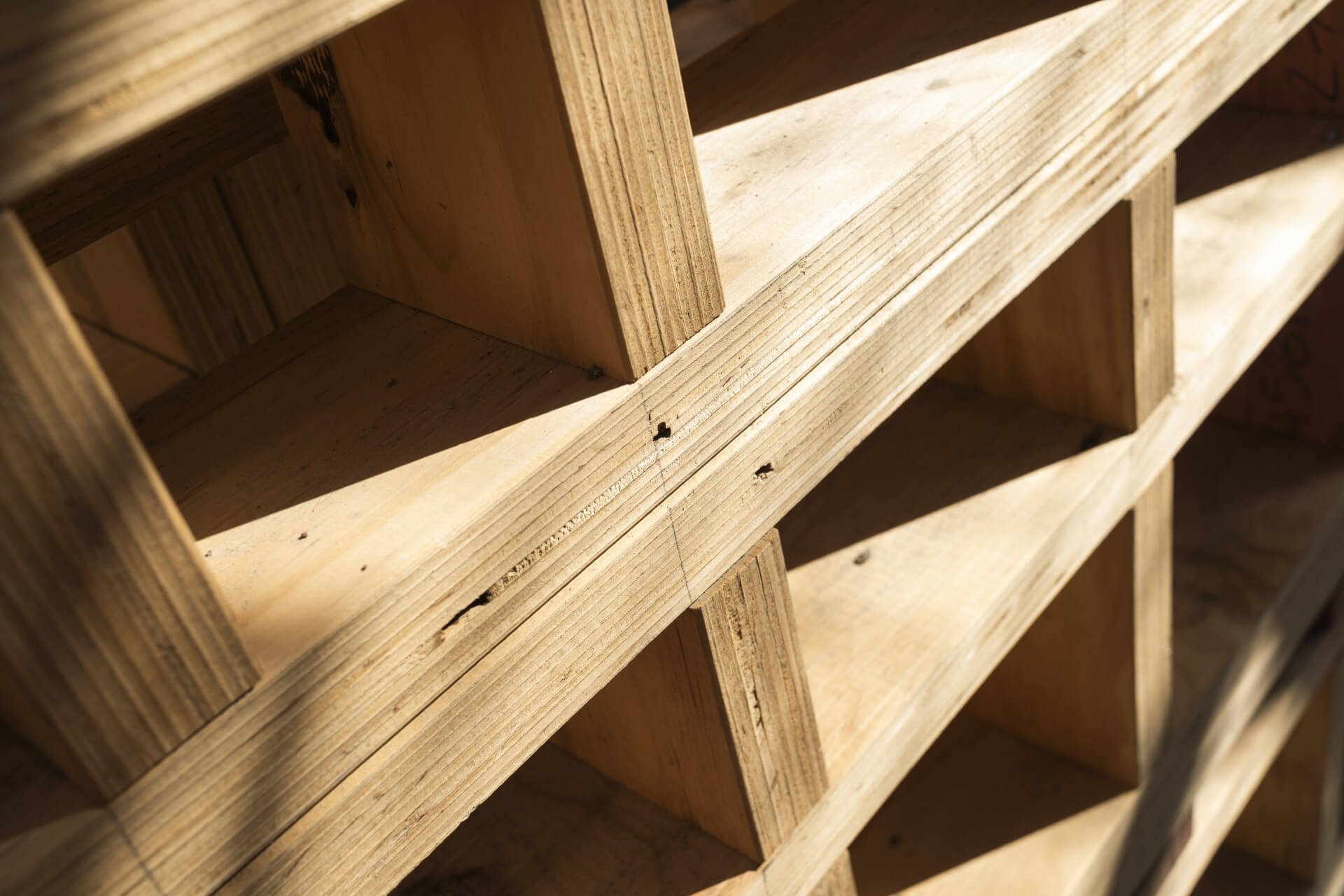

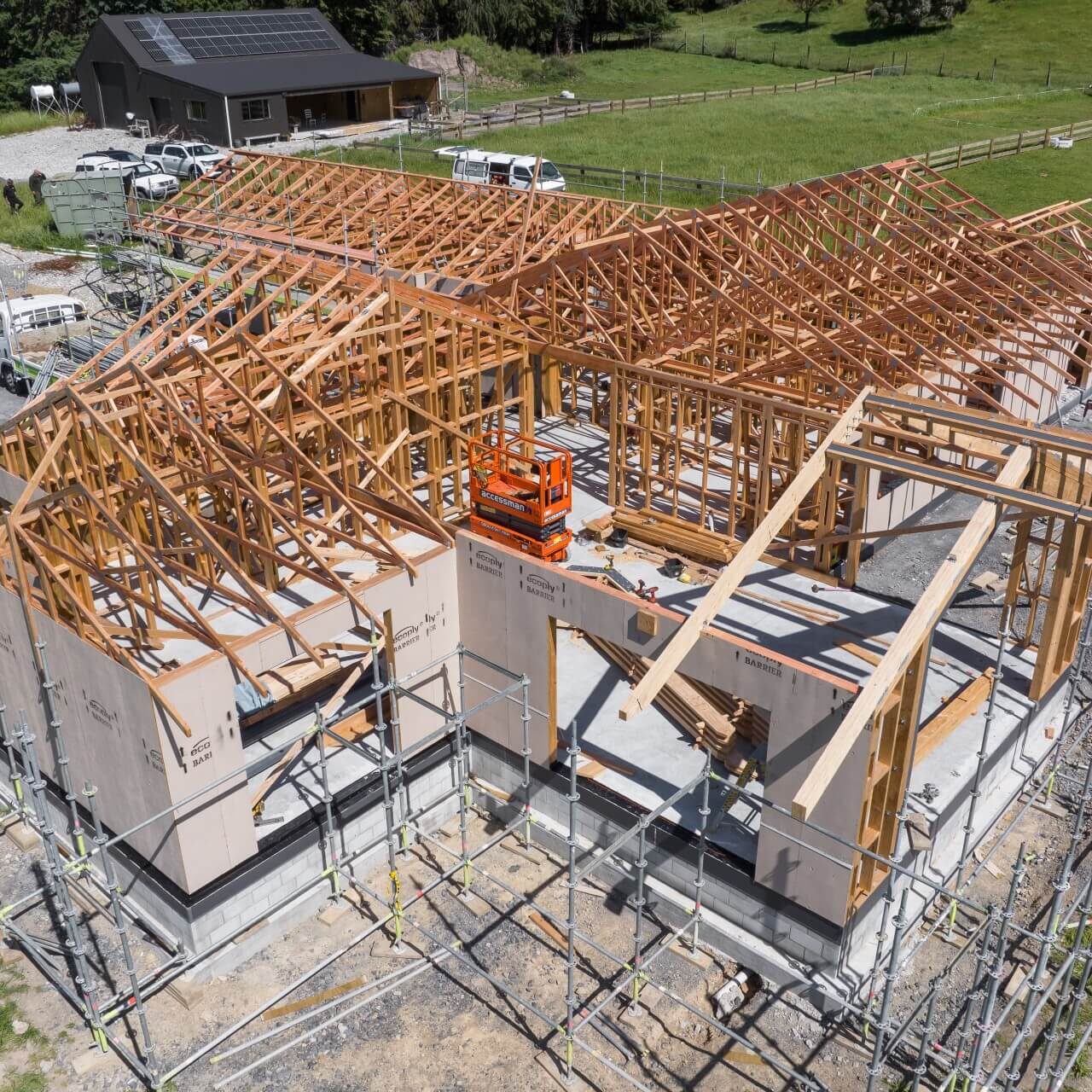

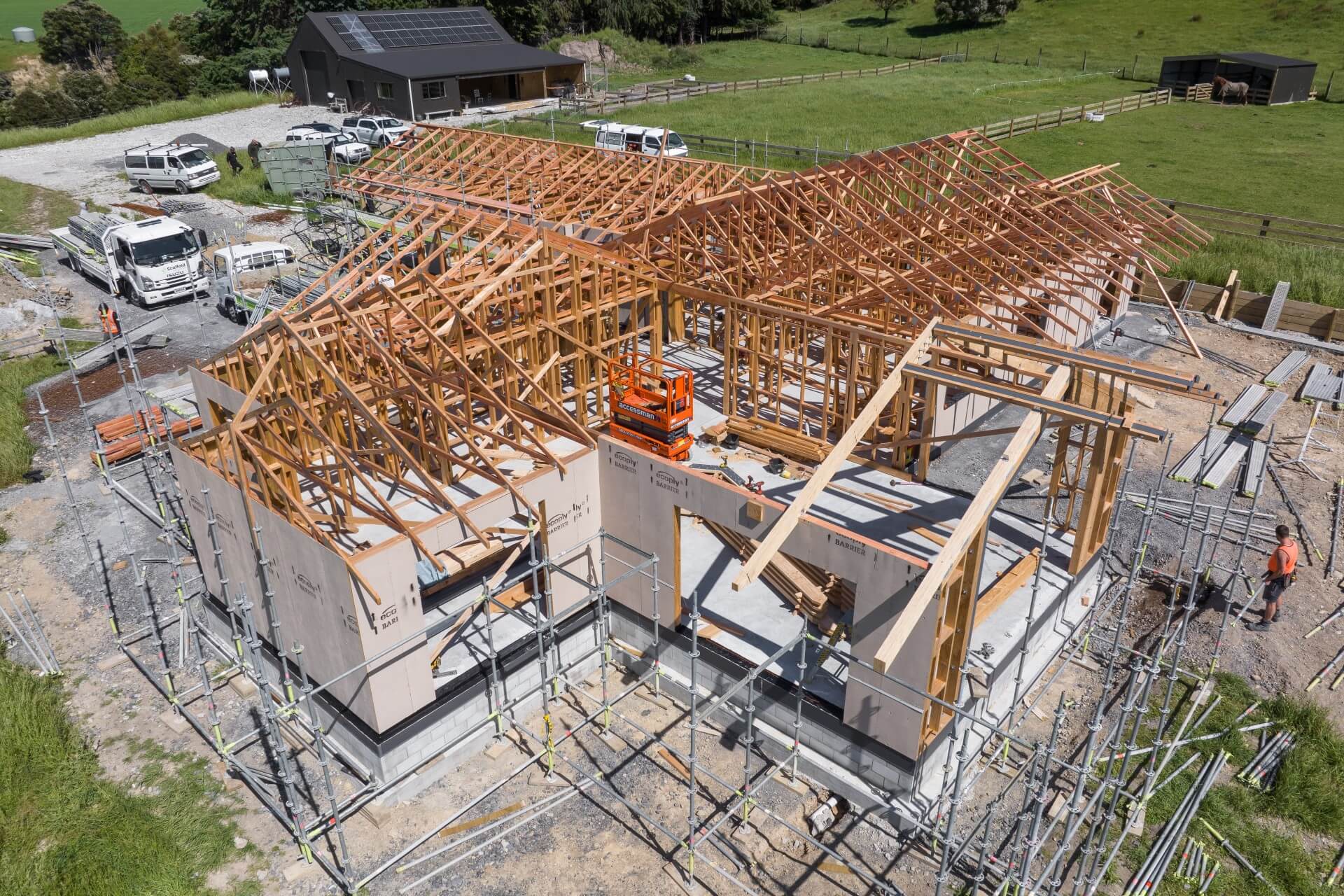

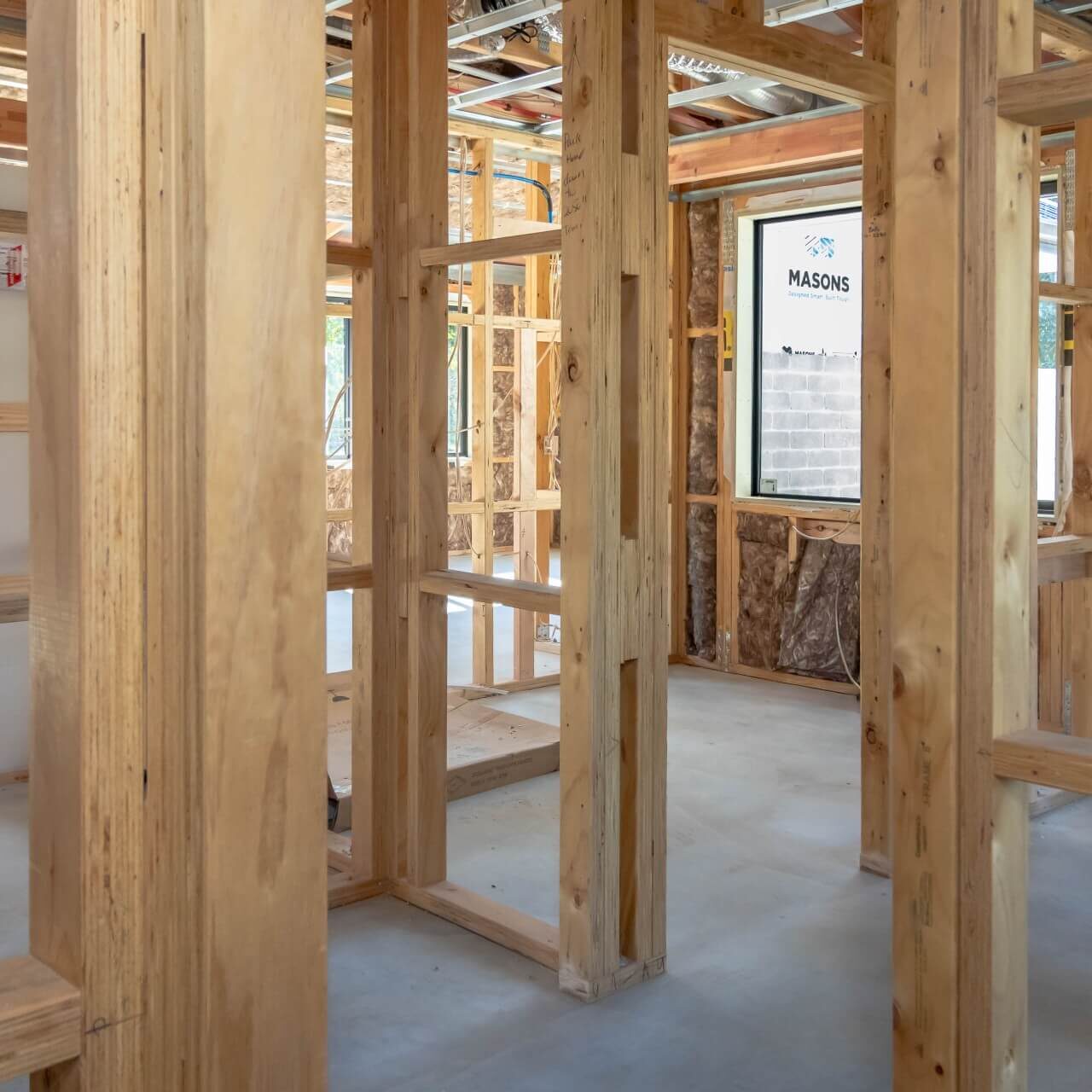

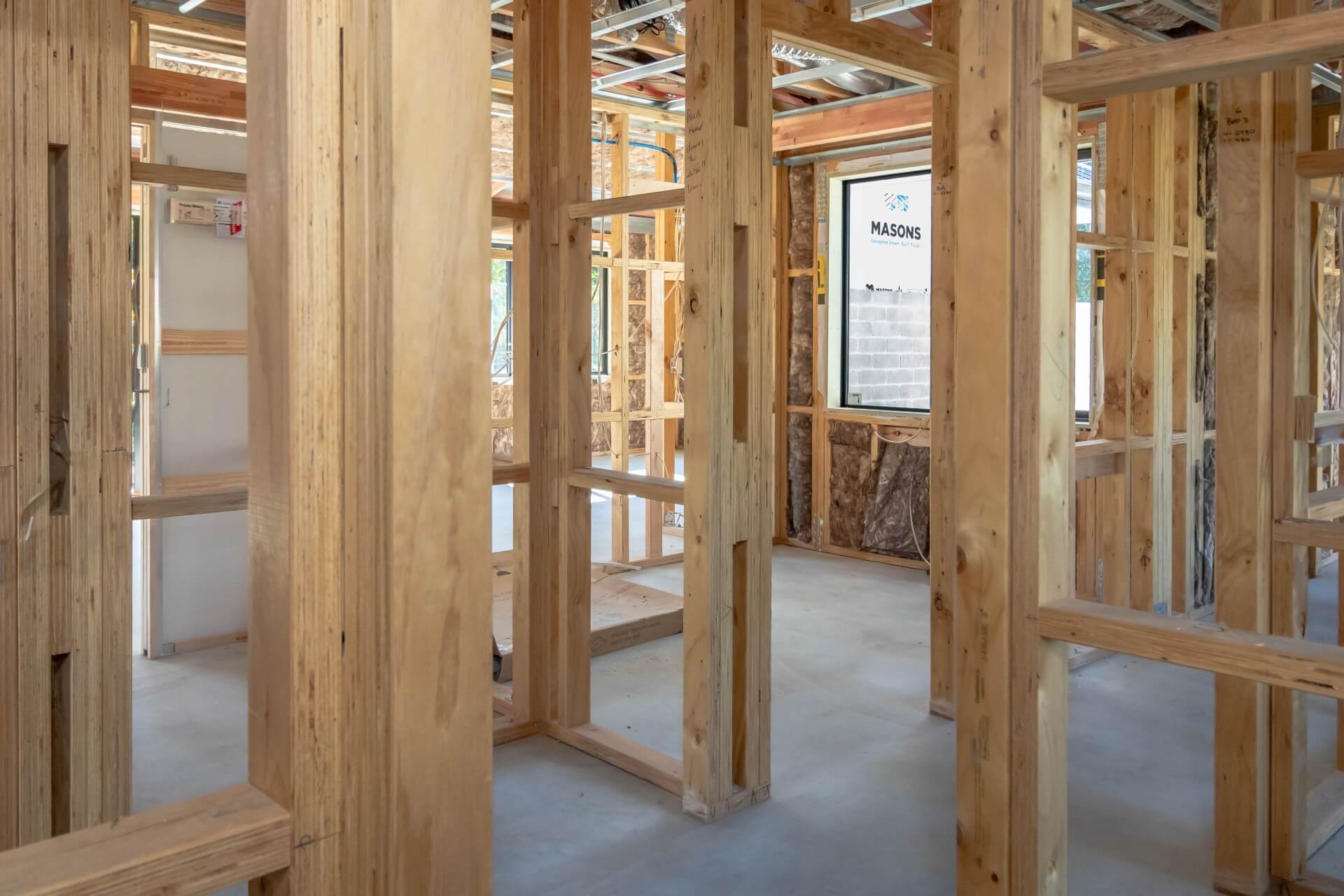

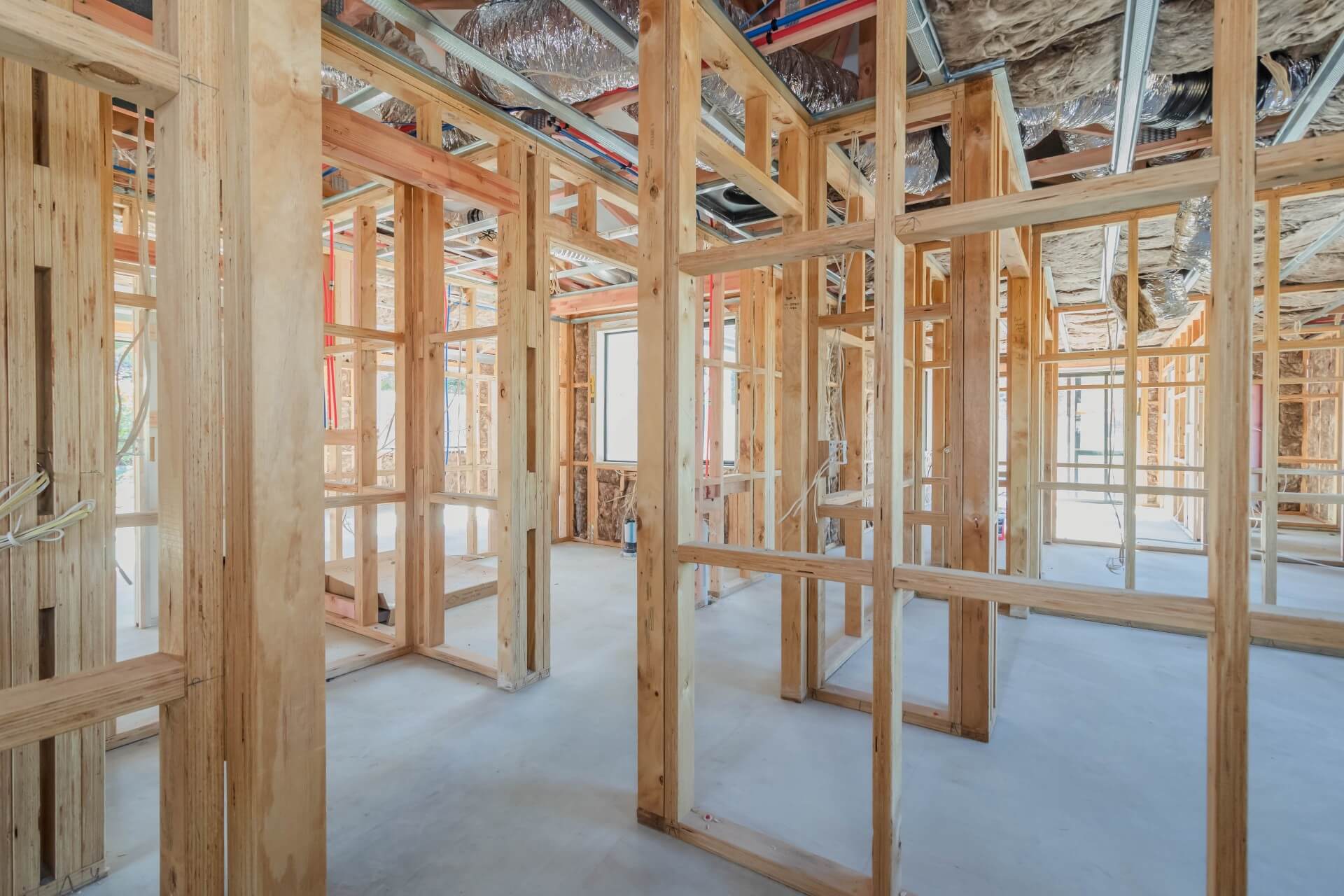

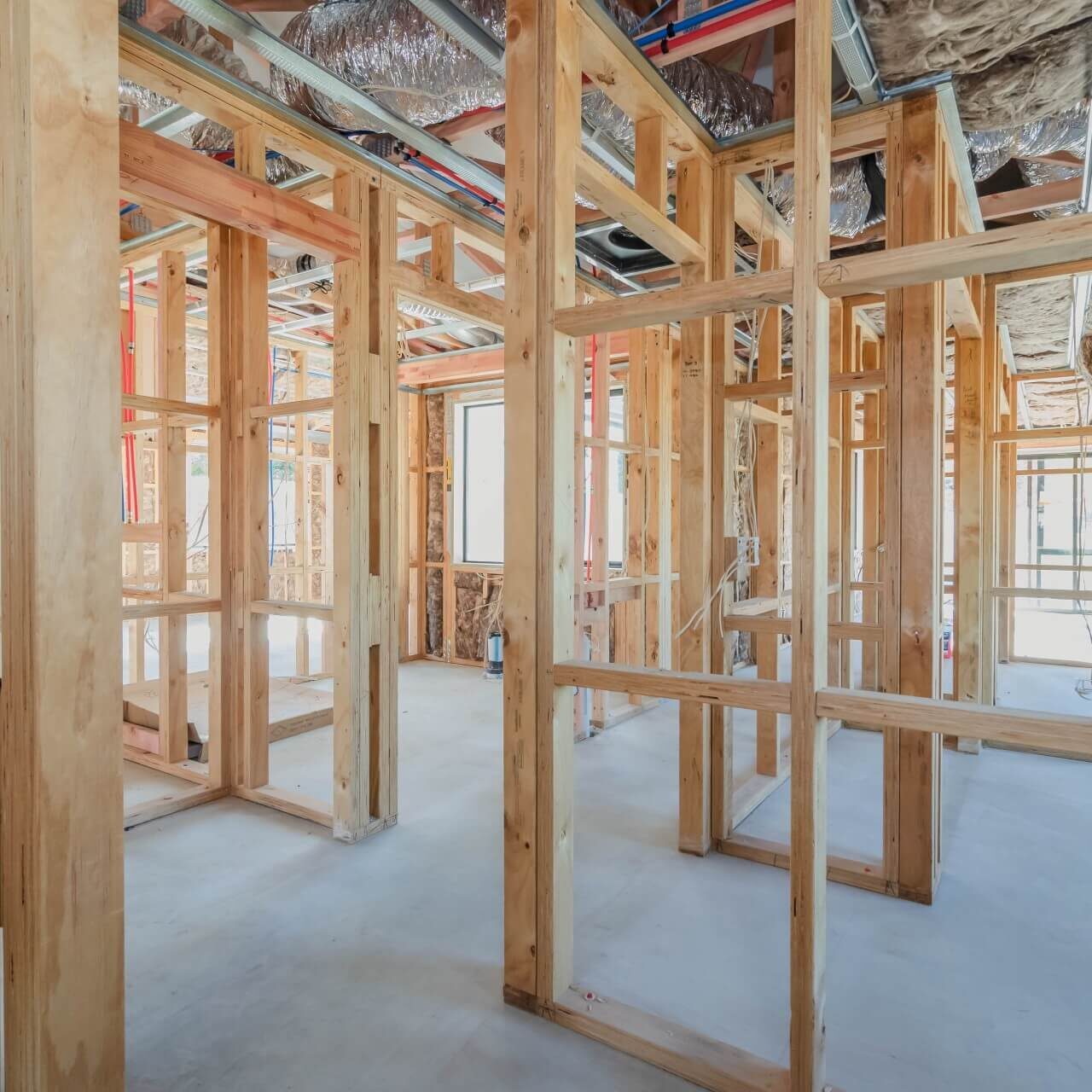

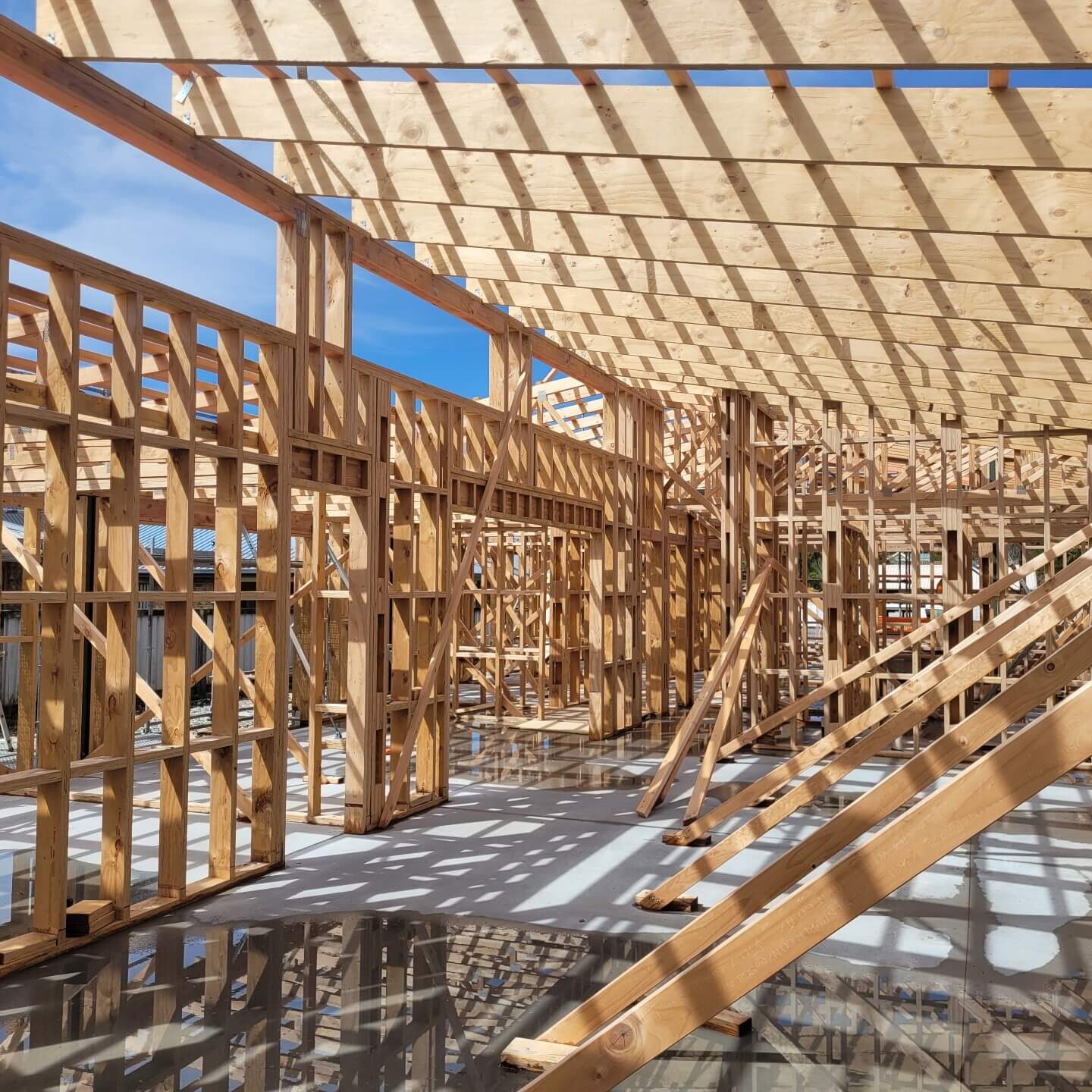

J-FRAME 8 is a general purpose Structural Laminated Veneer Lumber (LVL) gauged Framing timber manufactured by Juken New Zealand from Radiata Pine. A reliable straight and durable product, J-Frame 8 can be used in a wide range of applications including residential and commercial framing and truss systems. J-FRAME 8 is CodeMark certified, an engineered wood product, being manufactured to AS/NZS 4357 (Structural LVL), AS/NZS 1491 (Finger Jointed Structural Timber), supported by ISO 9001 (Quality Management System). (Refer Product & Process Integrity comments).

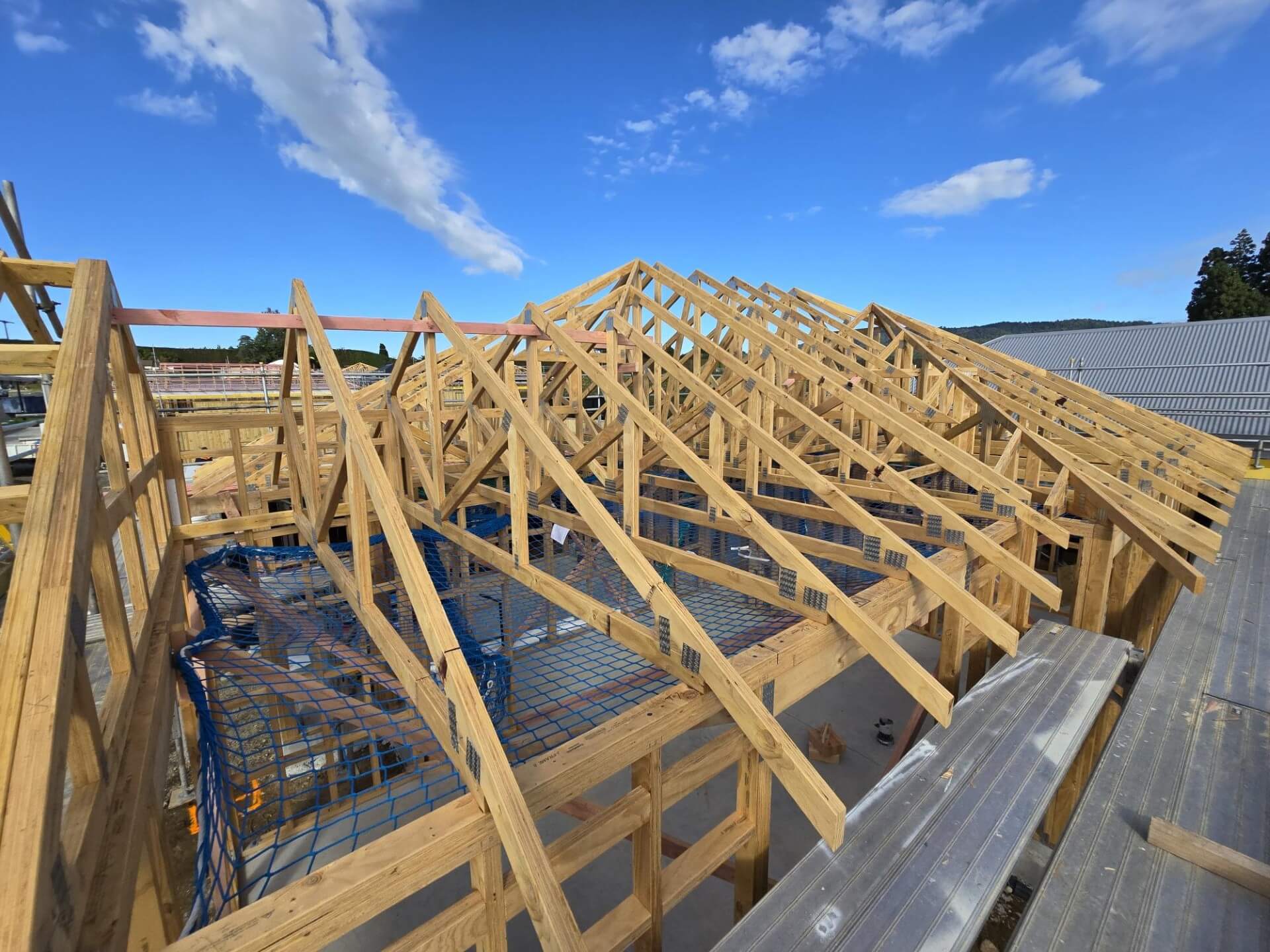

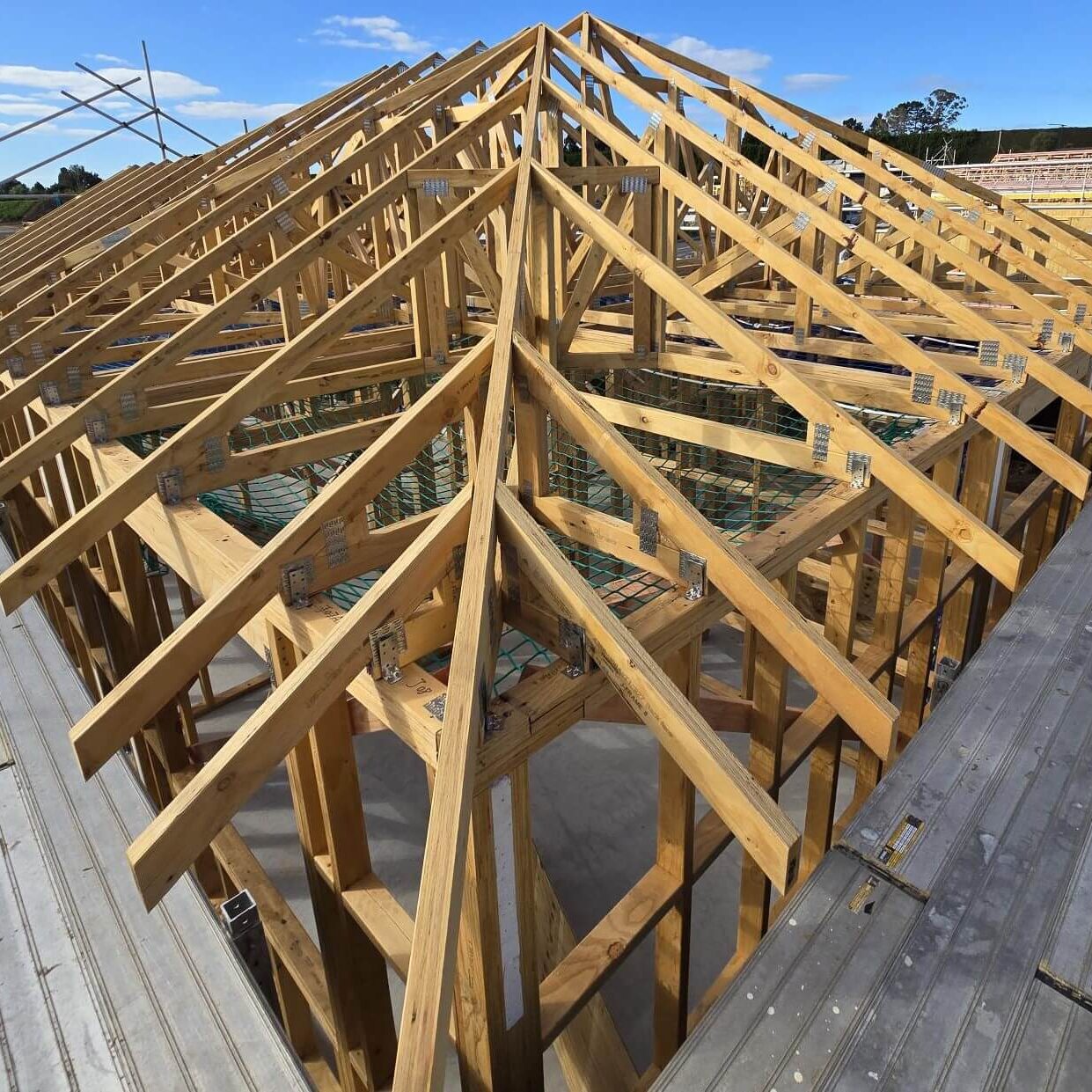

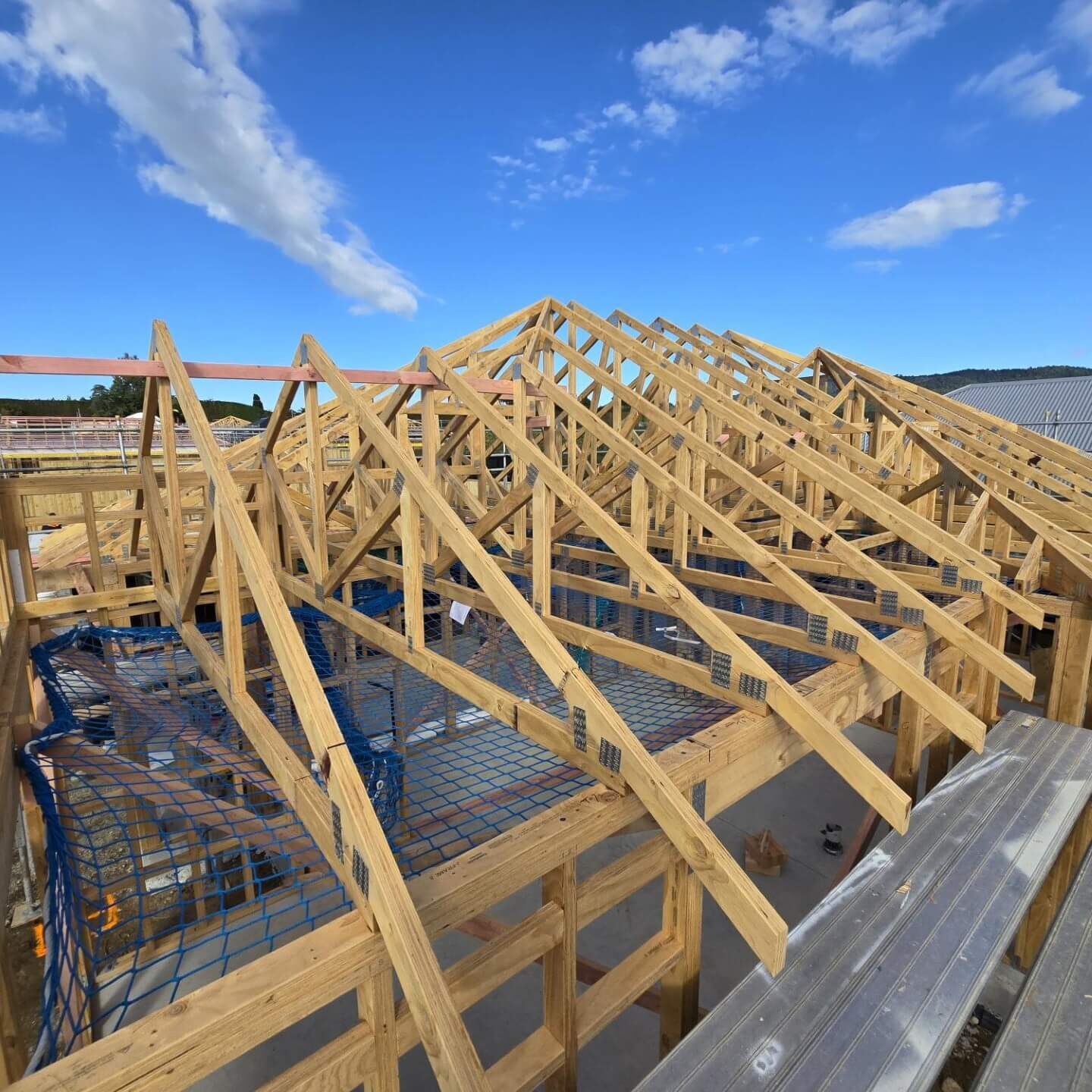

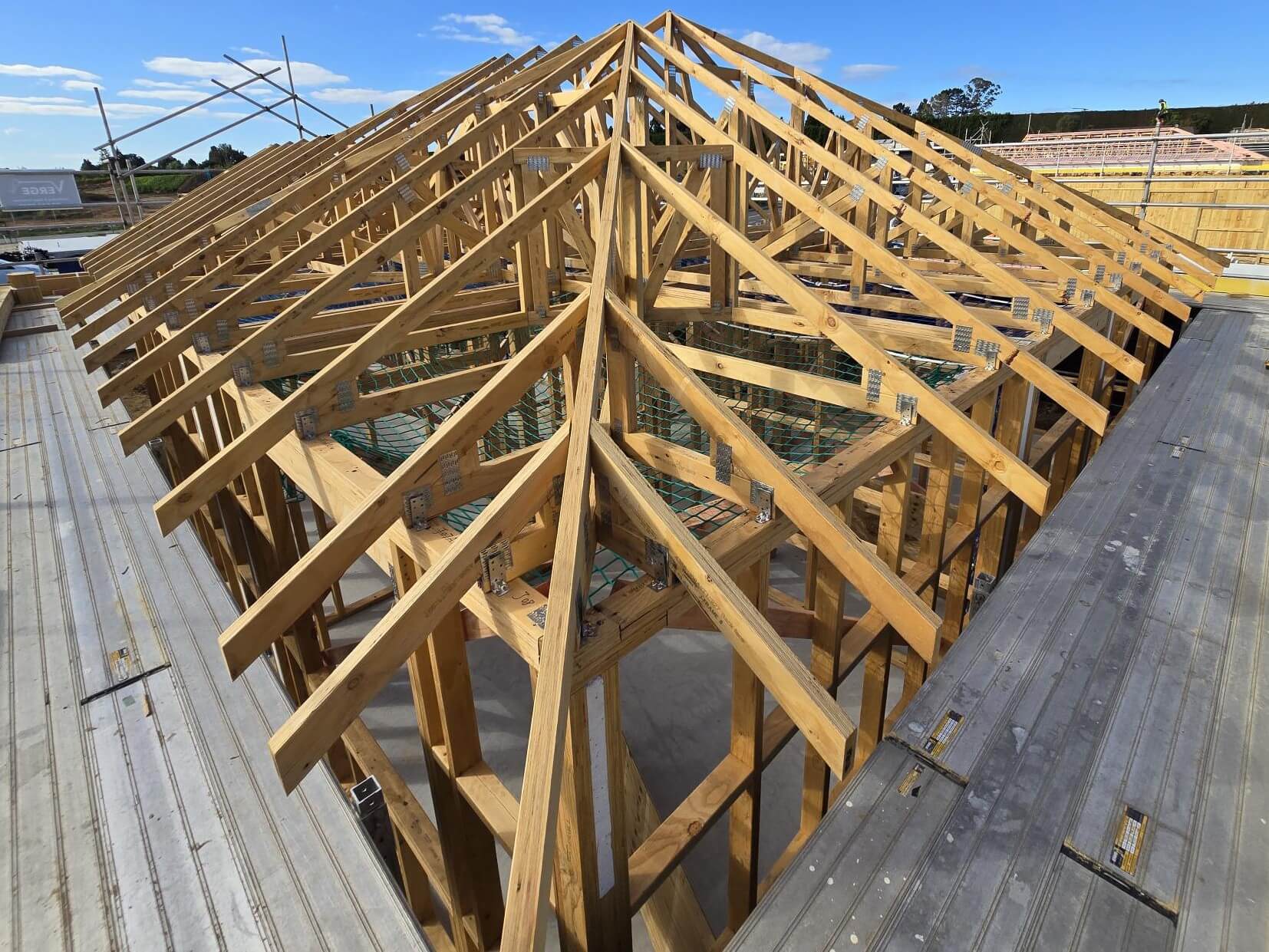

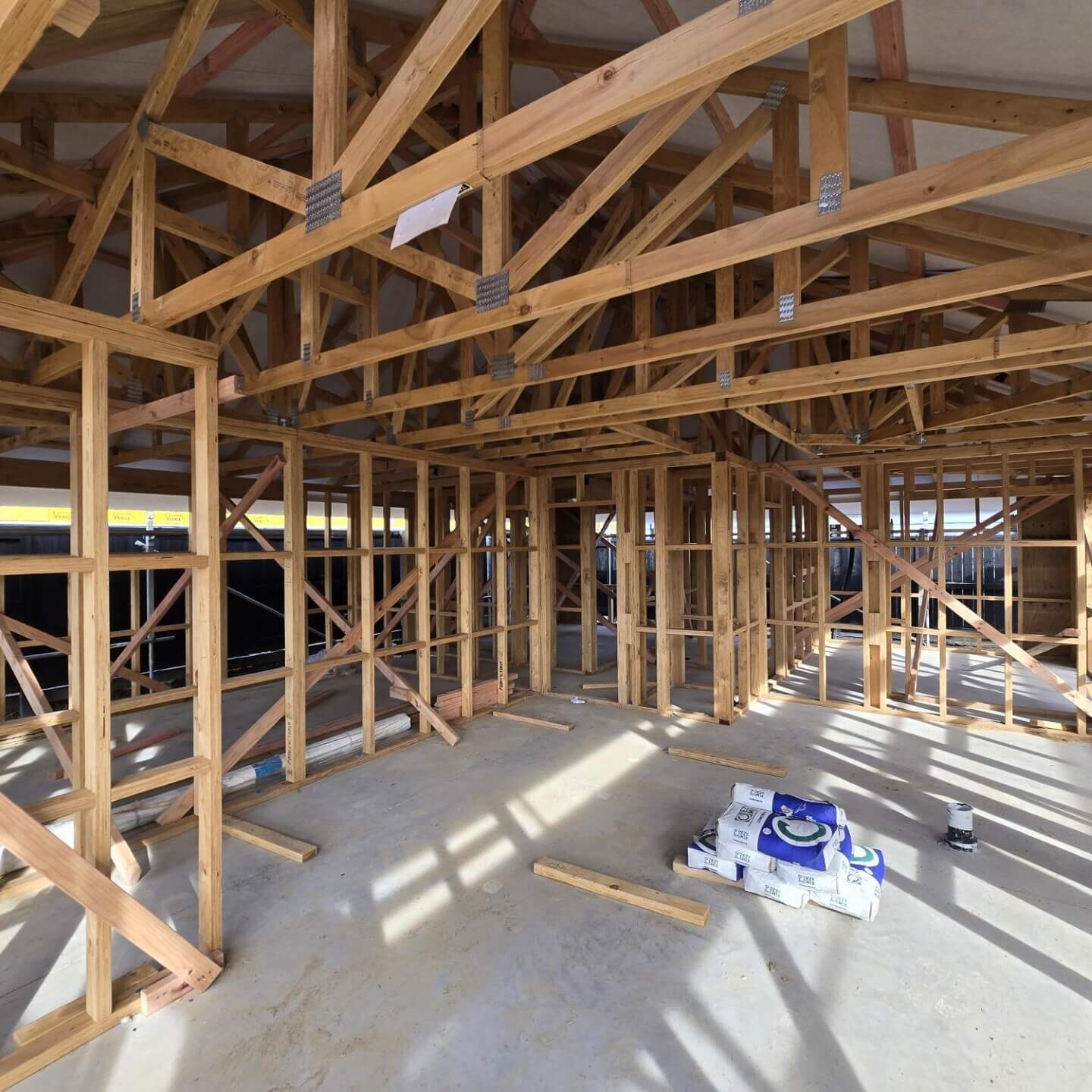

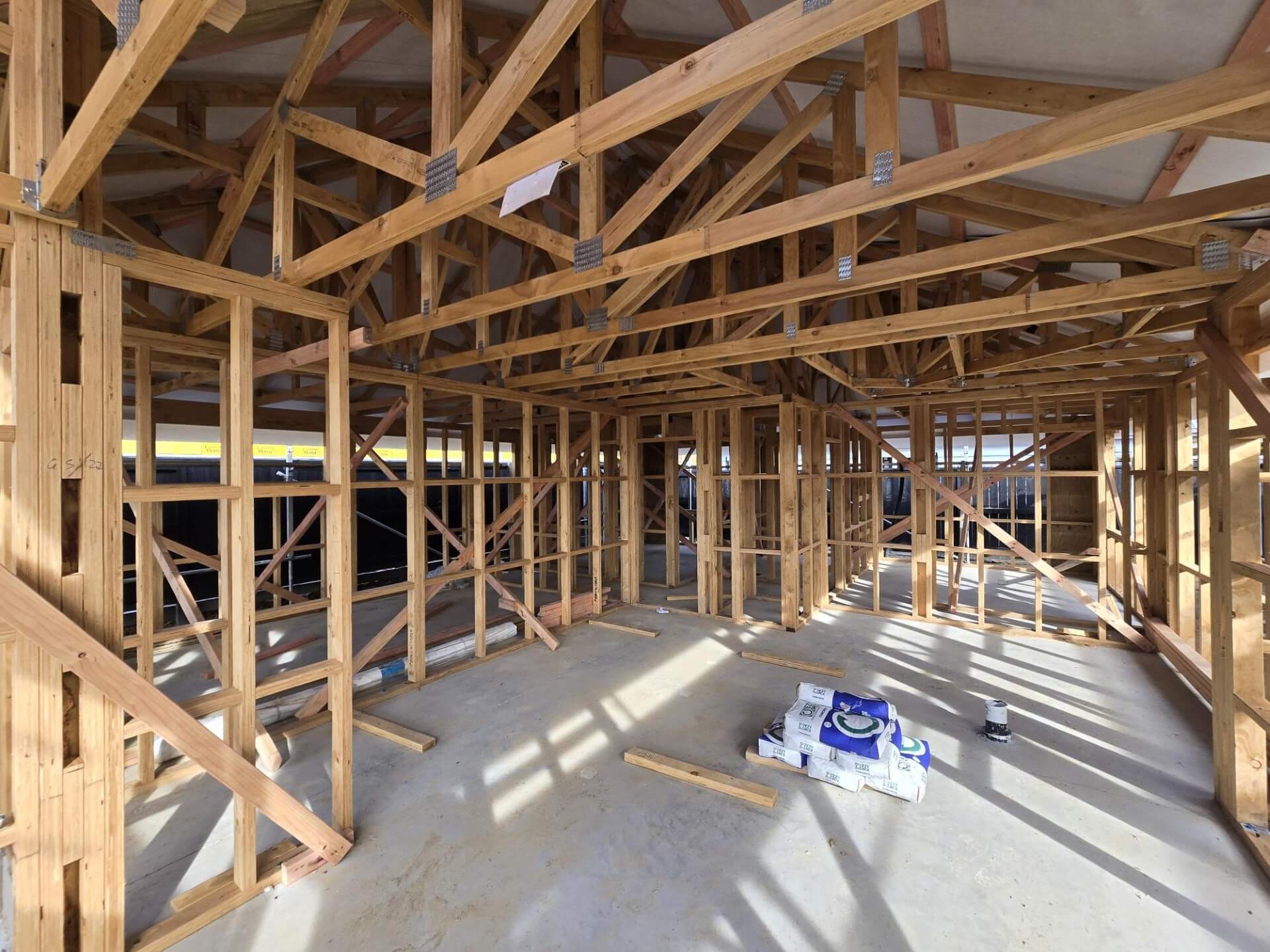

J-Frame Certified for Truss Systems
J-Frame 08 and J-Frame 11 are now available in Pryda and MiTek design software, helping truss manufacturers integrate J-Frame into established specification and design workflows and gives designers practical options where additional strength or design capability is required. Span tables are available in the tool bar above.
Design and Installation Guide
Ready to bring your build to life? Our Design and Installation Guide is your blueprint for building smarter, stronger, and with confidence—download it now!
Click here to learn more
Bond
J-FRAME 8 Structural LVL uses Phenol Formaldehyde Resin to produce an A Bond classification. This bond has a proven, internationally recognised durability record for exposure to moisture and stress. Australian Standard / New Zealand Standards AS/NZS 2754.1 “Adhesive for Timber and Timber Products” states for A Bond:
“……. can be used in applications involving extreme long-term exposure to weather or wet or damp conditions and/or long-term structural performance requirements without glue line break-down or glue line creep.”
Moisture Content
J-FRAME 8 is supplied to market with a targeted moisture content of 18%. Glue lines in LVL can affect moisture content measurements. Moisture equivalency tables for J-Frame 8 developed by Scion are available here
Treatment J-Frame 8 has CodeMark product certification for use where Hazard Class H1.2 or less applies.
Stress Grading
J-FRAME 8’s design and manufacturing process, ensures consistency in strength, stiffness and stability. Two structural grades of J-Frame are produced. The characteristic properties of J-Frame are above the minimum of MSG8 in respect of J-Frame 8 and above the minimum of MSG10 for J-Frame 11 as documented in table 2.3, NZS3603:1993 (Timber Structures Standard).

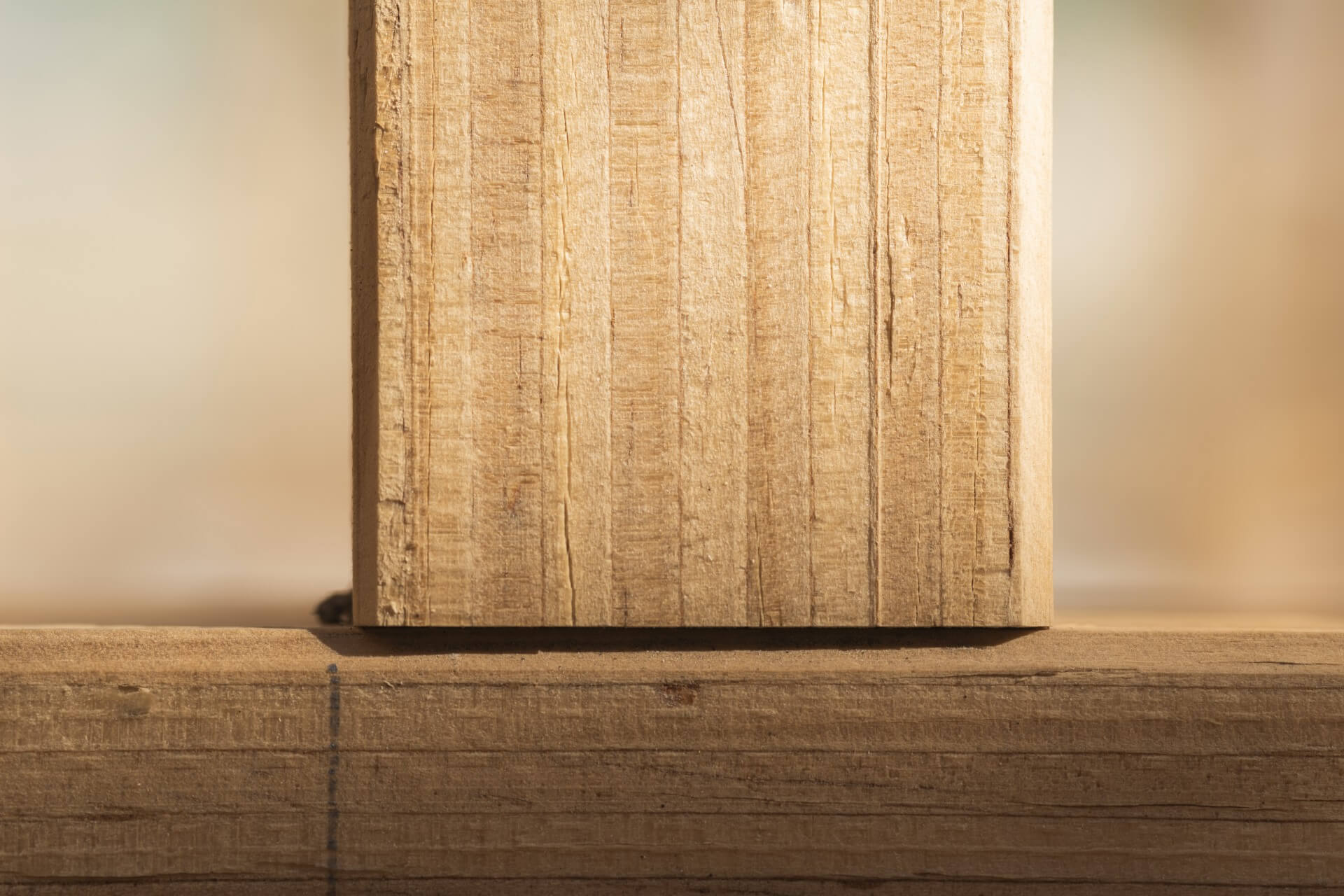

Finger Jointing
Standard lengths of J-FRAME 8 over 3 metres will have one finger joint per length. Finger jointing is audited by the EWPAA to confirm manufacture in compliance with AS/NZS1491 Finger Jointed Structural Timber.
Product Identification

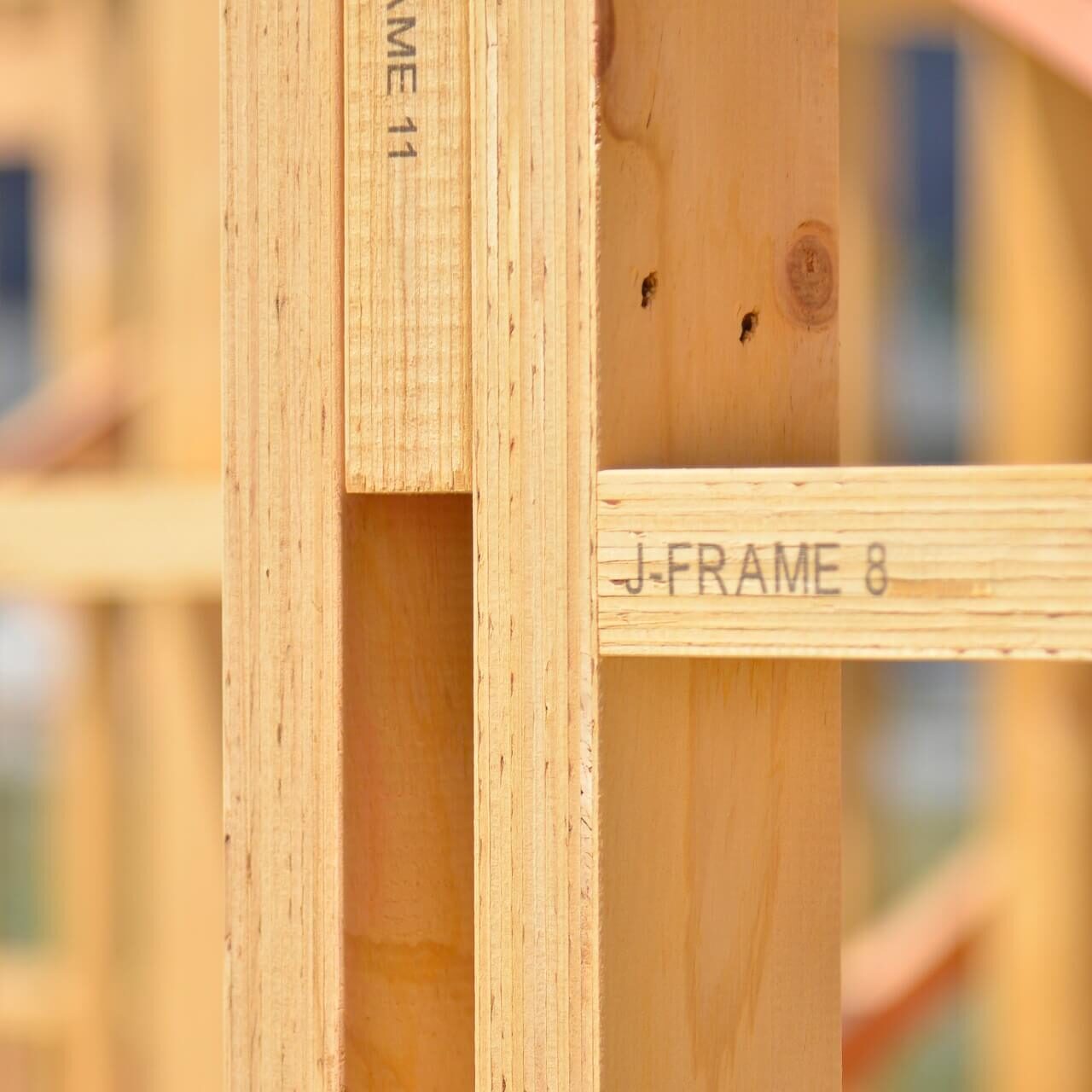

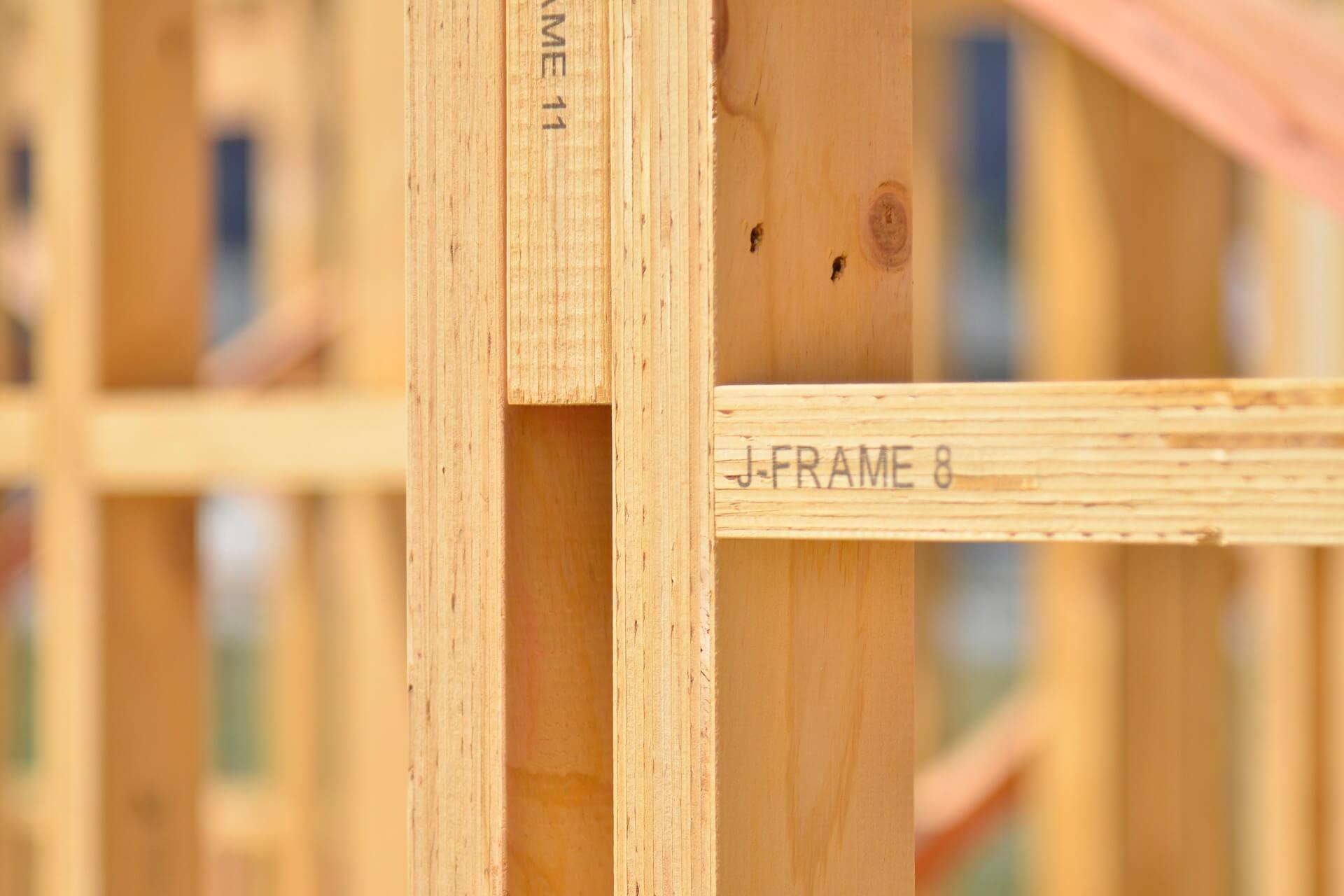

J-FRAME 8 is print branded to show product name and grade, applicable standards, Hazard Class applications of use treatment classification, and certifying bodies.
J-FRAME 8 should be kept dry when being stored. Place on ground with packers and cover with water proof plastic to prevent moisture.
Minimise exposure to weather and rain.
Protect Frames and Trusses from weather as soon as possible.
Dry out before covering/lining after exposure to wetting.
Product and Process Integrity
The Engineered Wood Products Association of Australasia (EWPAA) http://www.ewp.asn.au, SGS Timber Labs and Bureau Veritas, audit and/or test J-Frame to verify Juken’s quality systems and products.
Juken is certified to the ISO9001 Quality Management System Standard, which demands in-house documented procedures, training programs and process control systems.
Rigorous product testing as stipulated in the applicable standards and certification scheme rules are performed on each J-FRAME 8 manufacturing batch by Juken’s Quality Assurance Department. The internal testing is continually verified by the EWPAA independent testing of product, in its NATA accredited laboratory.
The Juken Wairarapa Mill has been manufacturing LVL since 2006 and has attained Forestry Stewardship Council® (FSC® C009303) Chain of Custody (COC), testifying that the Pinus radiata used in J-FRAME 8 is from a sustainable, environmentally managed forest resource.
